Terengganu Trial 2026 Physics Kertas 1 · MPP 3

Physics

Terengganu Trial 2026 Physics Kertas 1 · MPP 3

• Terengganu Trial MPP 3
• 40 questions
• With explanations

1

State the types of physical quantities for "Velocity, Density, Energy and Charge".

flag bookmark

A Base quantity B Derived quantity C Scalar quantity D Vector quantity

T4 Chapter 1.1 Physical Quantities

2

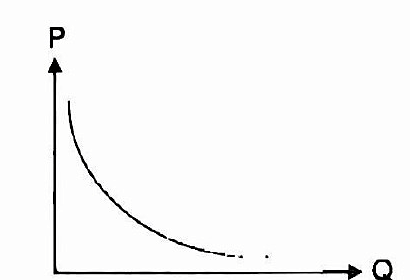

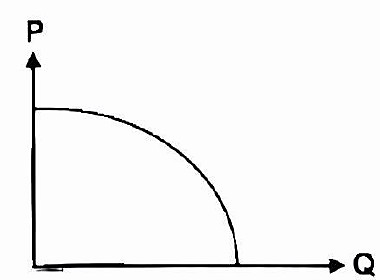

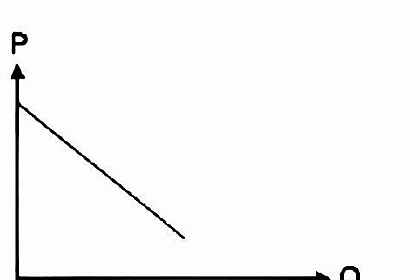

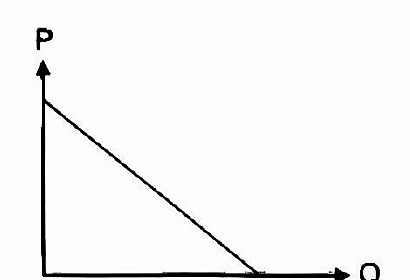

Which graph shows P is inversely proportional to Q?

flag bookmark

A B C D

T4 Chapter 1.2 Scientific Investigation

3

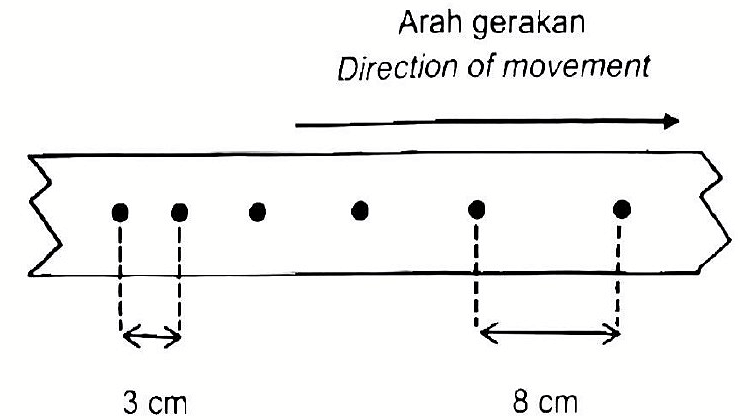

Diagram 1 shows a section of the ticker tape taken from the motion of a trolley in an experiment using a ticker timer with frequency 50 Hz. Calculate the acceleration of the trolley.

flag bookmark

A −25.0 cm s⁻² B −3125 cm s⁻² C 2500 cm s⁻² D 3125 cm s⁻²

T4 Chapter 2.1 Linear Motion

4

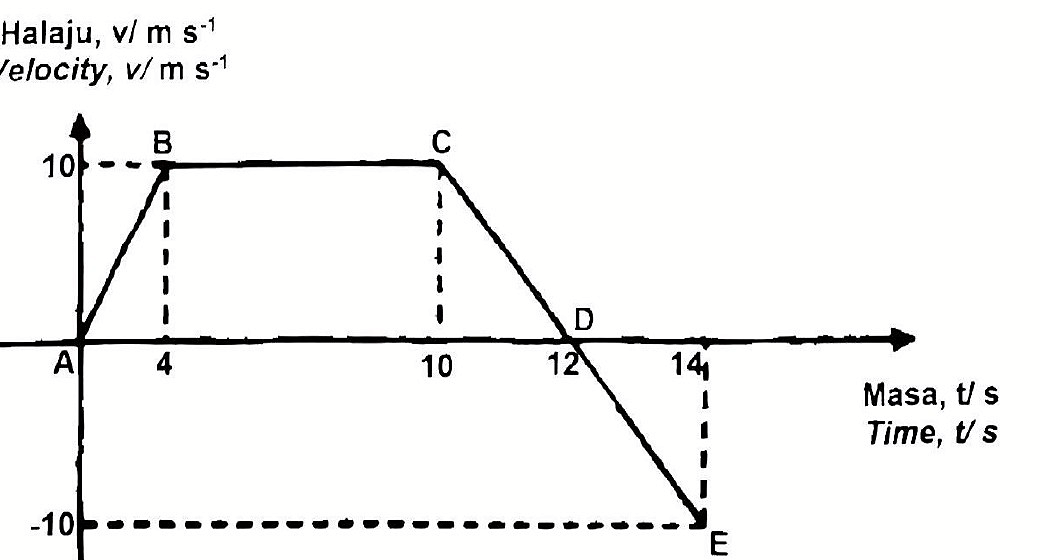

Diagram 2 shows the velocity-time graph for the movement of a car in 14 s. Calculate the distance of the car for the last 4 s.

flag bookmark

A 0 m B 20 m C 95 m D 105 m

T4 Chapter 2.2 Linear Motion Graphs

5

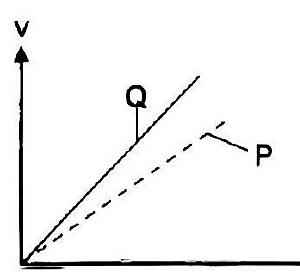

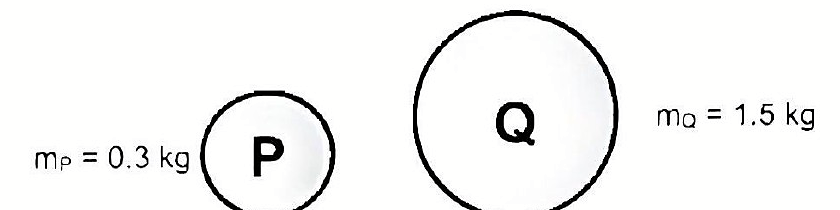

Diagram 3 shows two steel balls, P and Q are dropped from top of a building to the ground. Assume the air resistance is negligible. Which of the following velocity-time graph shows the **correct** motion of P and Q?

flag bookmark

A B C D

T4 Chapter 2.2 Linear Motion Graphs T4 Chapter 2.3 Free Fall Motion

6

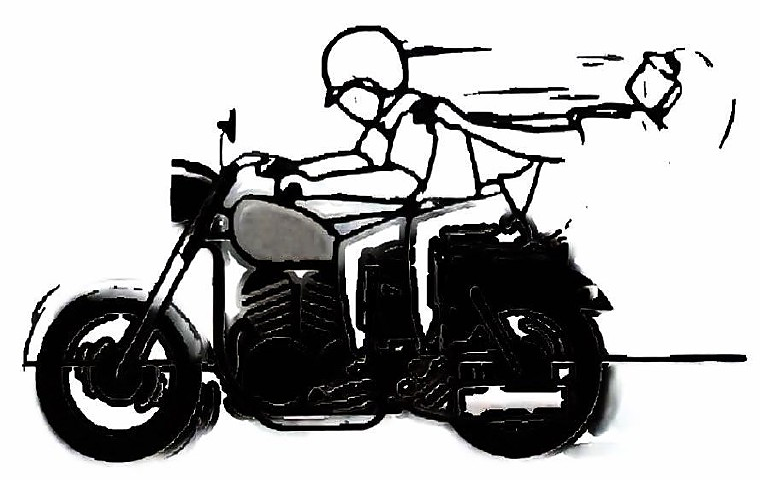

Diagram 4 shows a pillion rider moving backwards when the motorcycle accelerates. State the law that explains the backward movement of the pillion rider.

flag bookmark

A Newton's First Law of Motion B Newton's Second Law of Motion C Newton's Third Law of Motion

T4 Chapter 2.4 Inertia

7

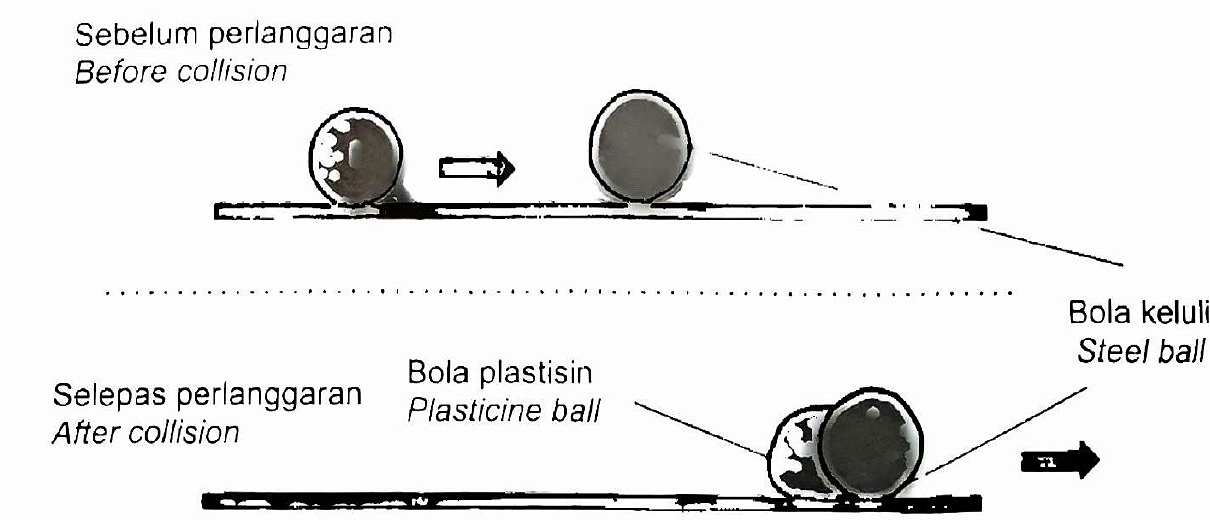

Diagram 5 shows a collision between plasticine and steel balls. State the principle that explains the above situation.

flag bookmark

A Pascal's Principle B Bernoulli's Principle C Principle of Conservation of Energy D Principle of Conservation of Momentum

T4 Chapter 2.5 Momentum

8

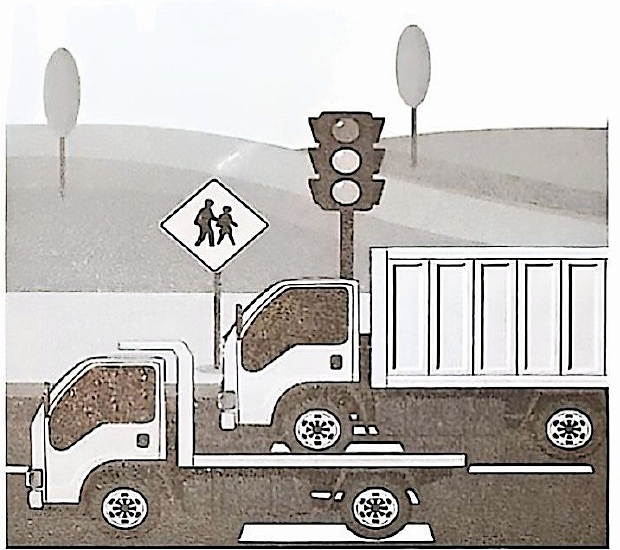

Diagram 6 shows two lorries of the same type but with different loads accelerating after the green traffic light turns on. Which relationship describes above situation?

flag bookmark

A Acceleration is directly proportional to force B Acceleration is directly proportional to mass C Acceleration is inversely proportional to force D Acceleration is inversely proportional to mass

T4 Chapter 2.6 Force

9

Diagram 7 shows a table-tennis player to hit a ball. Which of the following produces a high impulsive force?

flag bookmark

A The action of a player pulling his hand back before hitting the ball B A ping pong ball moving at very high velocity C A ping pong racket that has a soft rubber surface D The collision between a ping pong ball and the hard surface of a racket

T4 Chapter 2.7 Impulse and Impulsive Force

10

An astronaut with a mass of 75 kg can jump 40 cm from the surface of the Earth. Which of the following statements is **correct** if the astronaut jumped on the Moon? I The height of jumping increases. II The time of landing increases. III The velocity during landing increases. IV Acceleration increases.

flag bookmark

A I and II B I and III C II and III D II and IV

T4 Chapter 2.3 Free Fall Motion T4 Chapter 2.8 Weight
