SPM Physics 2026 Kuala Lumpur Trial TOP 5 Kertas 1 – 40 Questions with Answers

1

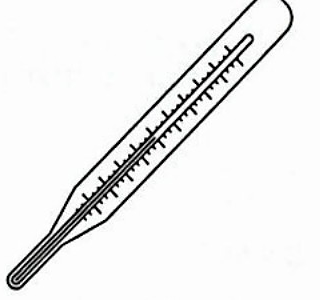

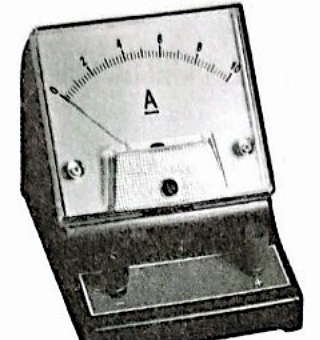

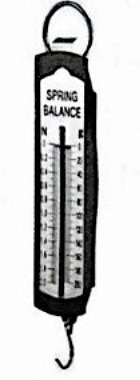

What is the measuring instrument measures a vector quantity?

A

B

C

D

2

What is the definition of derived quantity?

A Quantity that is derived from a combination of base quantities through multiplication, division or both. B Quantity that can be measured using a metre rule. C Quantity that cannot be defined in terms of other physical quantities. D Quantity that has magnitude only without direction.

3

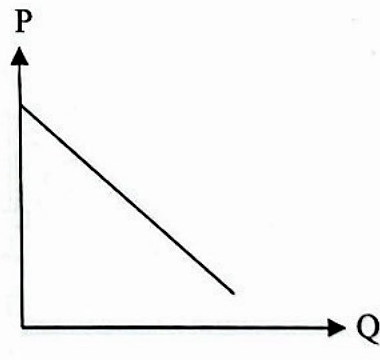

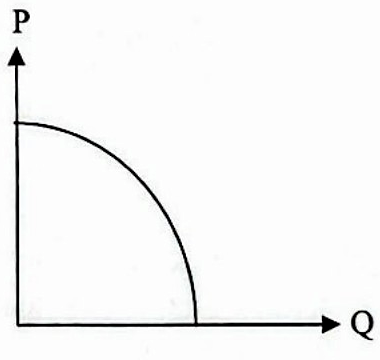

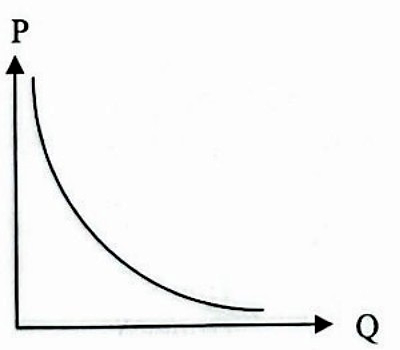

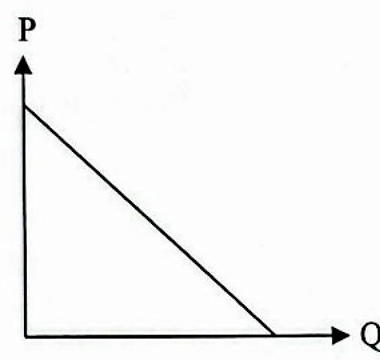

Which graph shows P is inversely proportional to Q?

A

B

C

D

4

Which of the following situations shows the Newton's First Law of Motion?

A

B

C

D

5

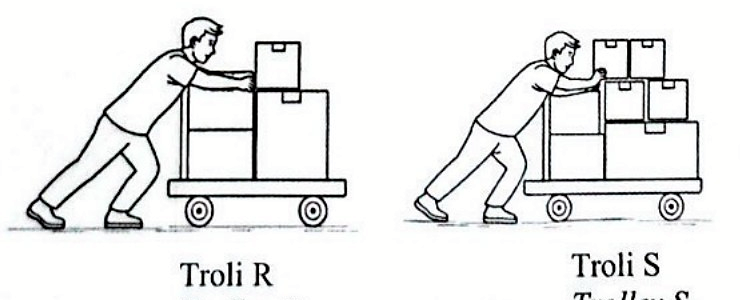

Diagram 1 shows two trolleys being pushed with the same force, F in 30 seconds. The distance travelled by trolley R and trolley S is 5 m and 3 m respectively. Which of the following statements is correct?

A The decreasing in mass will increase the acceleration of the trolley B The increasing of mass will increase the acceleration of the trolley C The decreasing of the velocity will increase the acceleration of the trolley D The increasing of velocity will decrease the acceleration of the trolley

6

Diagram 2 shows glass cups that is wrapped with bubble wraps. What is the purpose of wrapping the glass cup?

A To lengthen the time of impact. B To increase the impulsive force. C To shorten the time of impact. D To increase the pressure exerted on the glass cup.

7

Diagram 3 shows a girl hitting a ball in the pickle ball game. What needs to be done to increase the impulsive force?

A The bat hits the ball. B The ball is hit with follow through action. C The player swing bat at high velocity. D The ball is hit with surface of bat with high elasticity.

8

Johannes Kepler, a German astronomist who had discovered laws that describe the movement of planets around the Sun such that : I all planets move in elliptical orbits, with the Sun at one focus. II a line that connects a planet to the Sun sweeps out equal areas in equal times. III the square of the period of any planet is directly proportional to the square of the radius of its orbit. IV the square of the period of any planet is directly proportional to the cube of the radius of its orbit. Which of the following has the correct statement?

A I and II only B I and III only C II and III only D I, II and IV only

9

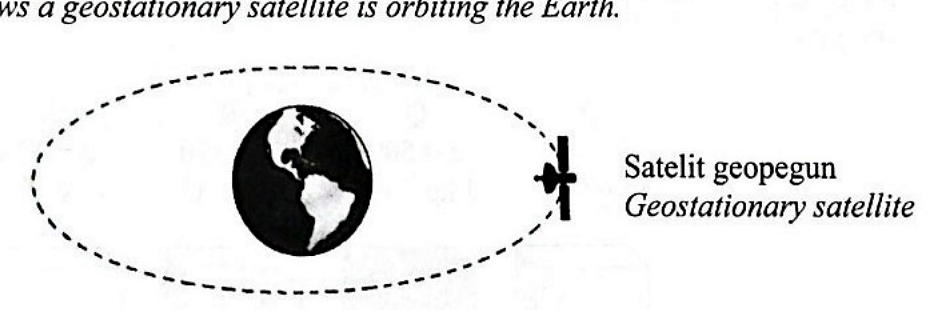

Diagram 4 shows a geostationary satellite is orbiting the Earth. Which statement is correct about the satellite?

A The orbital period of the satellite is more than 24 hours. B The orbital period of the satellite is less than 24 hours. C The satellite has direction of motion same as the direction of Earth rotation. D The satellite is located above different geographical positions at different time.

10

> "The net heat transfer between two objects in thermal contact is zero" Which of the concept explains the above statement?

A Heat transfer B Specific heat capacity C Specific latent heat D Thermal equilibrium
