SPM Physics 2026 Negeri Sembilan Trial Set 1 Kertas 1 – 40 Questions with Answers

1

Which of the following S.I unit for physical quantities is correct?

A Physical quantity: Area; S.I unit: cm³ B Physical quantity: Velocity; S.I unit: m s⁻² C Physical quantity: Momentum; S.I unit: kg m s⁻¹ D Physical quantity: Density; S.I unit: kg m⁻²

2

Diagram 1 shows a car moves at a constant speed on a road. The car is said to move with

A Constant acceleration B Zero acceleration C Changing acceleration

3

Diagram 2 shows a martial art student breaking a pile of woods. Which of the following is the physics concept that make the woods break?

A Impulse B Momentum C Resonance D Impulsive force

4

Diagram 3 shows a few passengers on a roller coaster that is installed with special safety system. Which of the following physics law explains the importance of using the safety system?

A Newton's First Law of Motion B Newton's Second Law of Motion C Newton's Third Law of Motion D Newton's Universal Law of Gravitation

5

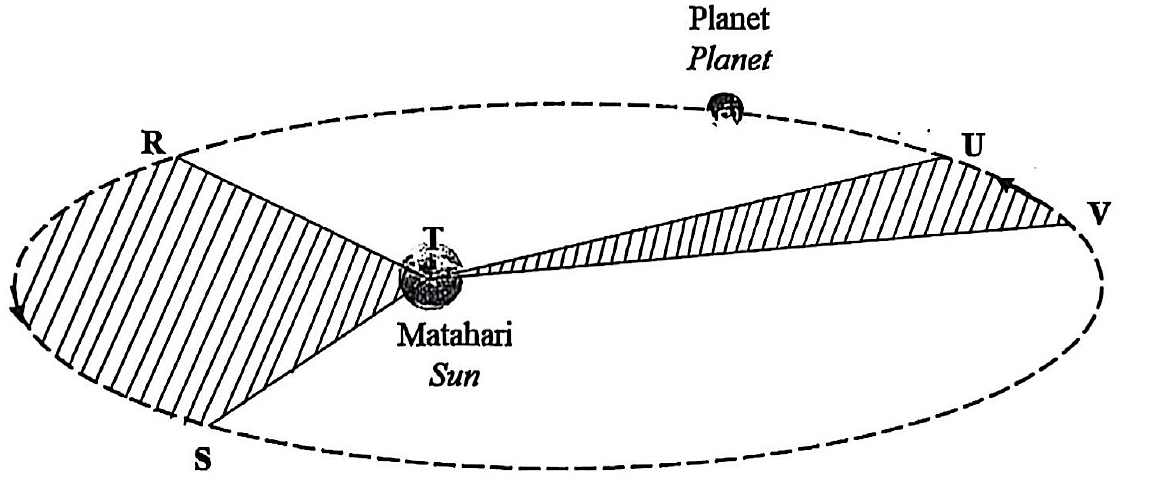

Diagram 4 shows a planet orbiting the Sun. The area covered by RST and TUV is the same. Which of the following is true about the time taken by the planet when moving from R to S and from V to U?

A RS ≤ VU B RS > VU C RS = VU D RS < VU

6

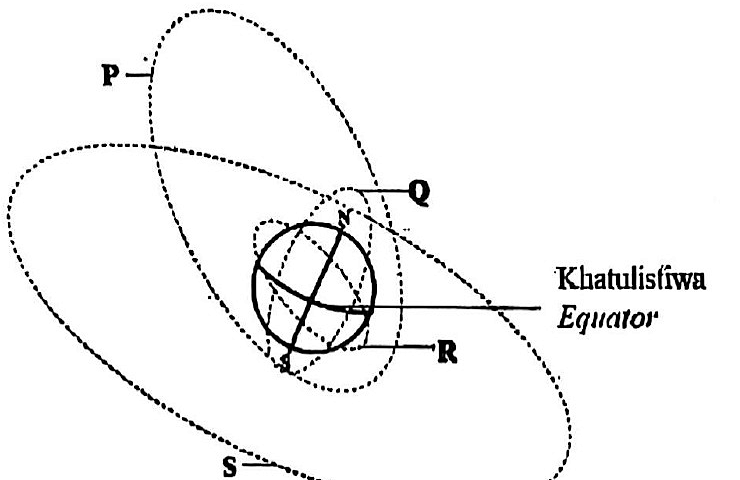

Diagram 5 shows several orbits of satellites that revolve around the Earth. Which of the following is not the characteristics of satellites S?

A Located on a changing geographical position on the Earth's surface B Moves around the Earth in the same direction as the Earth's rotation C The orbital period is the same as the Earth's rotation period D Located in a special orbit called Geostationary Earth Orbit

7

Diagram 6 shows a hot bowl of soup left for a few minutes to cool until it reaches room temperature. Which of the following statements is correct about the soup at room temperature?

A The quantity of heat lost from the soup to the surroundings is zero B The rate of heat loss to the surroundings from the soup is greater than the rate of heat gain from the surroundings to the soup C The rate of heat loss to the surroundings from the soup is less than the rate of heat gain from the surroundings to the soup D The rate of heat loss to the surroundings from the soup is equal to the rate of heat gain from the surroundings to the soup

8

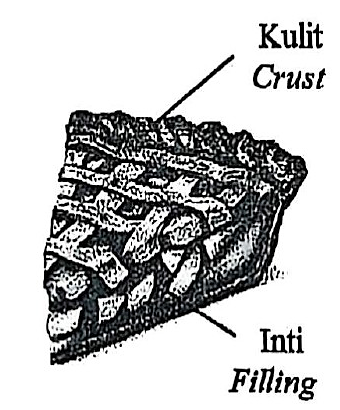

Diagram 7 shows a piece of apple pie. When Danish ate the pie, he found that the filling of the pie was hotter than the crust. Which of the following statements is correct?

A The pie filling has a lower specific latent heat B The crust and the pie filling have the same specific heat capacity C The pie crust absorbs more heat D The pie filling has a higher specific heat capacity

9

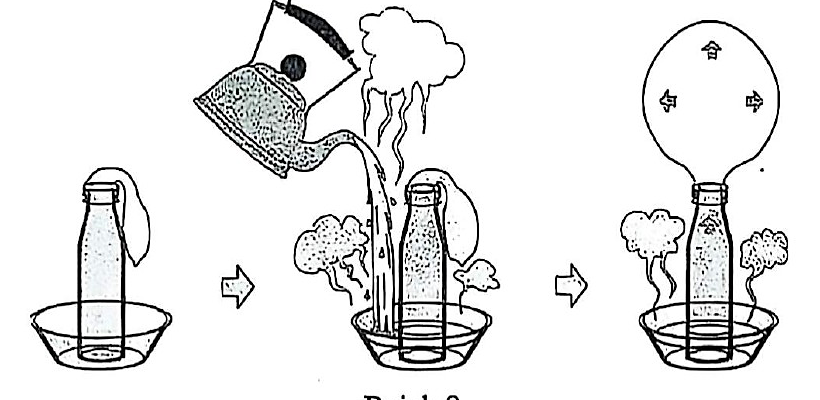

Diagram 8 shows the size of a balloon before and after being heated with hot water. *(The question line is missing in the source scan; it asks which gas law is involved.)*

A Hooke's law B Boyle's law C Charles' law D Gay-Lussac's law

10

Which equipment applies the concept of total internal reflection?

A Binocular B Telescope C Microscope D Slide projector
