SPM Physics 2026 Kedah Trial Kertas 1 – 40 Questions with Answers

1

What is derived quantity?

A Physical quantity that has magnitude only B Physical quantity that has both magnitude and direction C Physical quantity which cannot be derived from another physical quantity D Physical quantity which is derived from multiplication or division of base quantity or both operations

2

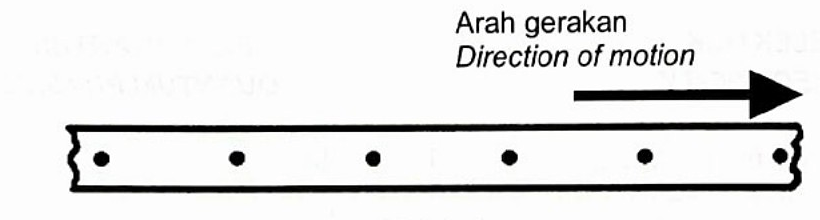

Diagram 1 shows a strip of ticker tape by a moving trolley. What is type of motion of the trolley?

A Uniform deceleration B Uniform acceleration C Uniform velocity D Stationary

3

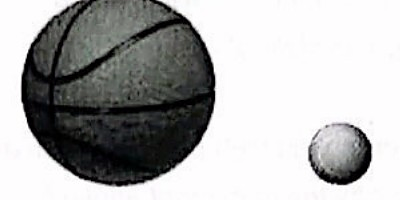

Diagram 2 shows a basket ball and a tennis ball being dropped in a vacuum. Which of the following velocity-time graphs show the correct motion of the basket ball and the tennis ball?

A

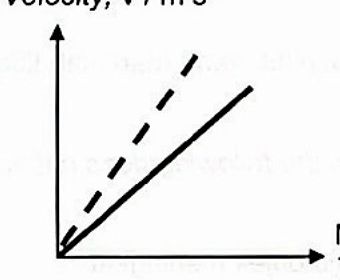

B

C

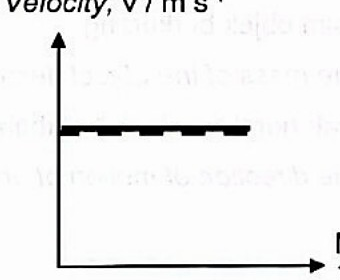

D

4

An object will remain at rest or continue moving with uniform velocity unless it is acted upon by an external force to change its state of motion. What physics law is explained by the statement above?

A Newton's First Law of Motion B Newton's Second Law of Motion C Newton's Third Law of Motion D Newton's Universal Law of Gravitation

5

Which of the following does not occur when a force is applied to an object?

A The speed of object increases B The shape of the object changes C The mass of the object decreases D The direction of motion of object changes

6

What effect does low gravity have on humans?

A Bone fragility decreases B Bone density increases C Blood pressure decreases D Size of lung decreases

7

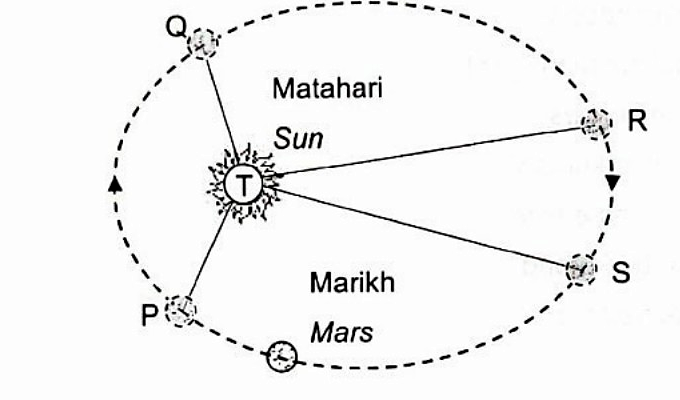

Diagram 3 shows the planet Mars orbitting the Sun at an average speed of 24.1 km s⁻¹. The time taken from P to Q is the same as R to S. Which statement is correct describing the movement of the planet Mars in its orbital?

A The area of sector RTS is same as PTQ B Acceleration from P to Q same as R to S C The distance from P to Q is same as R to S D The average speed from P to Q is same as R to S

8

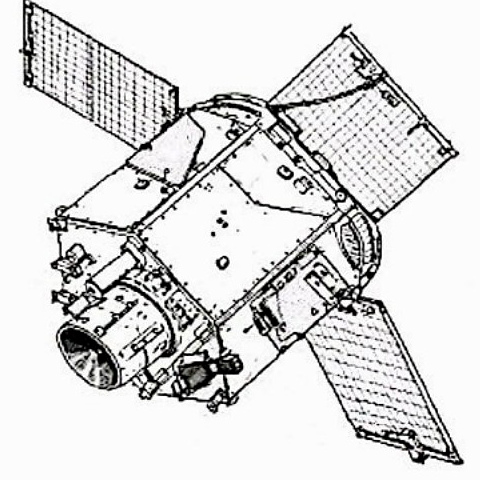

Diagram 4 shows a Malaysian-made satellite, RazakSAT. This satellite is equipped with a high-resolution camera used in imaging the Earth's surface. This satellite was launched on 14 July 2009. Which statements is correct characteristics of the satellite?

A Orbiting the Earth in Geostationary Earth Orbit B The orbital period is the same as the Earth's rotation period C Orbiting the Earth in the opposite to the direction of the Earth's rotation D The geographical location from the Earth's surface keeps changes

9

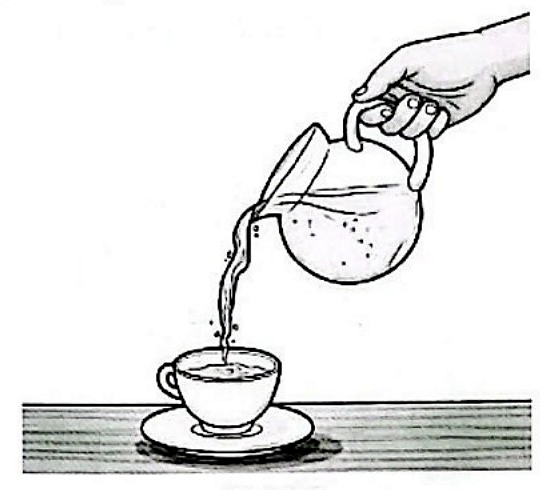

Diagram 5 shows hot water poured into a cup. The water is left until it reaches thermal equilibrium with the surrounding. Which statement is true after thermal equilibrium is reached?

A Temperature of water is higher than temperature of air B The net rate of heat transfer is zero C No heat transfer between water and air D The rate of heat transfer from water to air is higher

10

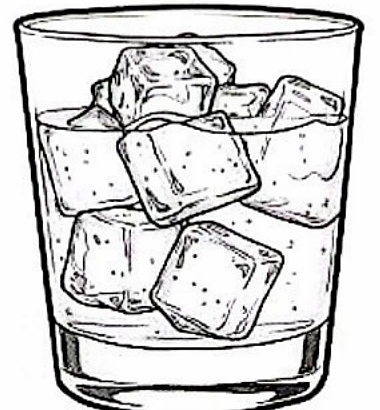

Diagram 6 shows the ice cubes melting in the glass. Throughout the process, the temperature of ice in the glass does not change. Why the temperature of ice does not increase even in the hot surrounding?

A Heat absorbed by ice to weaken the molecular bond of the ice B Heat absorbed by ice to break the molecular bond of the ice C Heat absorbed by ice to increase kinetic energy of ice molecule D Heat absorbed by ice to decrease kinetic energy of ice molecule
