SPM Physics 2024 Pahang Trial Set 1 Kertas 1 – 40 Questions with Answers

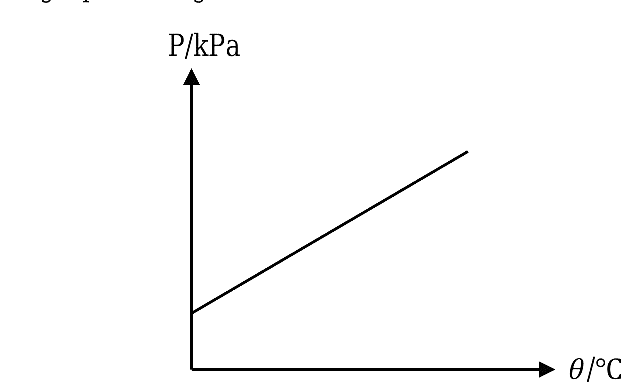

Diagram 1 shows a graph of P against θ. What is the relationship of the graph above?

A P is directly proportional to θ B P increases linearly with θ C P decreases linearly with θ D P is inversely proportional to θ

Which of the following is true regarding the motion of a car with constant velocity?

A The car is moving with zero acceleration B The car is moving with minimum velocity C The car is stationary D The car is moving with increasing acceleration

What is the type of motion for a ping pong ball dropped in a vacuum?

A Free fall B Uniform velocity C Decreasing velocity D Increasing acceleration

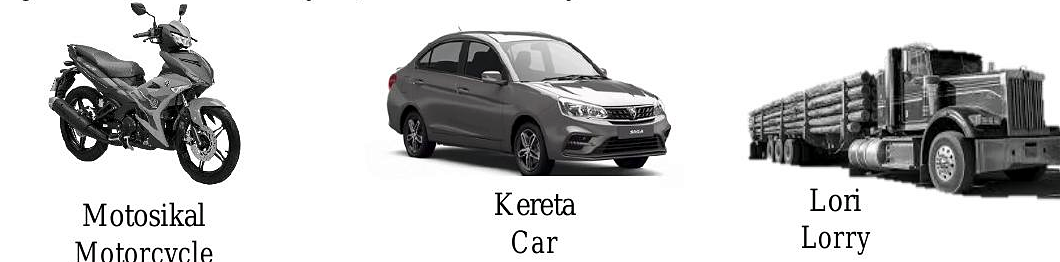

Diagram 2 shows a motorcycle, a car and a lorry. If all the vehicles move with the same speed, which comparison is correct for the time taken for the vehicles to stop at a red traffic light?

A Motorcycle > car > lorry B Car > lorry > motorcycle C Lorry > car > motorcycle D Lorry > motorcycle > car

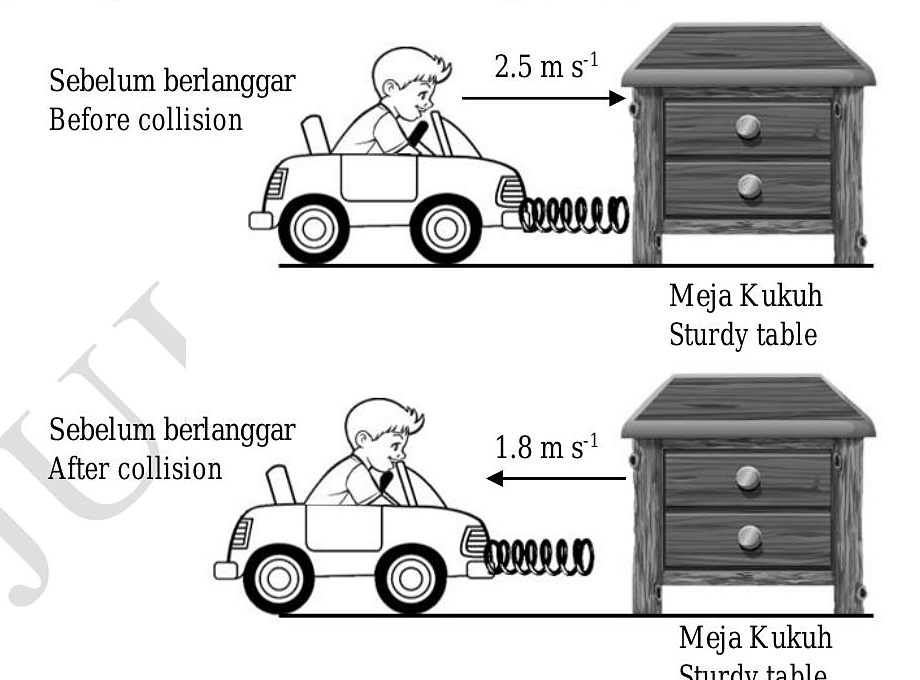

Diagram 3 shows a boy riding a toy car, before and after a collision with a table. The mass of the boy is 20 kg and the mass of the car is 25 kg. What is the impulse produced by the collision?

A −31.5 kg m s⁻¹ B −86.0 kg m s⁻¹ C −107.5 kg m s⁻¹ D −193.5 kg m s⁻¹

What will happen if the force exerted on an object moving with uniform velocity is increased in the same direction as its motion?

A The object becomes stationary B The object will experience acceleration C The object moves with decreasing velocity D The object remains in motion with uniform velocity

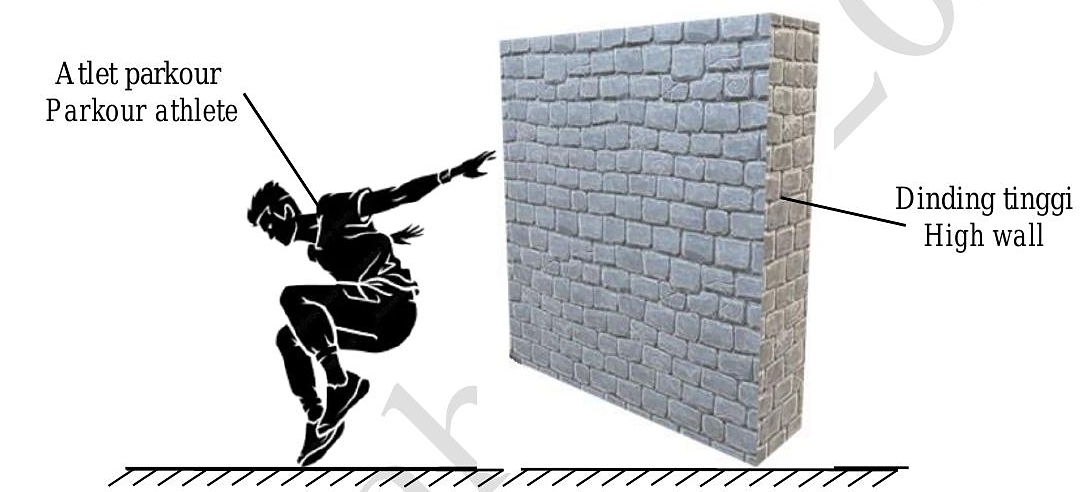

Diagram 4 shows a parkour athlete bending his knees after jumping from a high wall. Which of the following is true about the situation above?

A To reduce impulse B Time of impact is short C To increase impulsive force D To lengthen time of impact

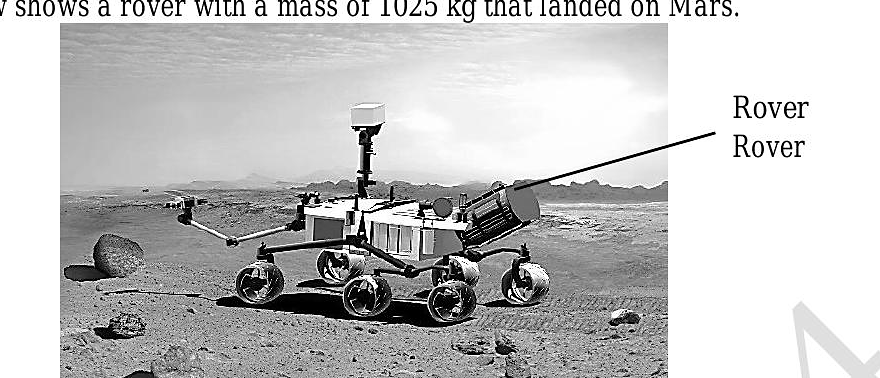

Diagram 5 shows a rover with a mass of 1025 kg that landed on Mars. Which of the following statements correctly describes the weight of the rover on Mars?

A Zero weight B Weight decreases C Weight increases D Weight unchanged

Which statement correctly describes Kepler's First Law?

A The semi-major axis is equal to the planet's average distance from the Sun B All planets move in elliptical orbits with the Sun at one focus C The square of the orbital period of any planet is directly proportional to the cube of the radius of its orbit D A line that connects a planet to the Sun sweeps out equal areas in equal times

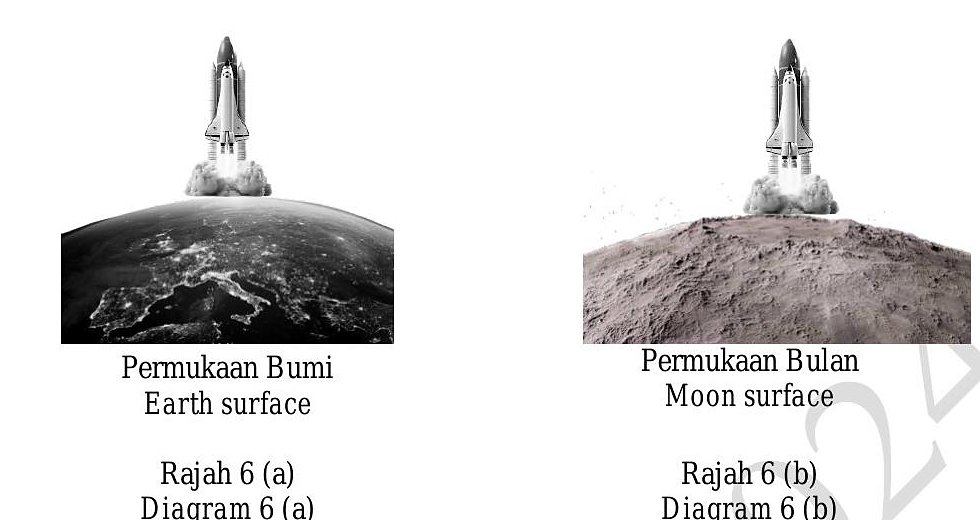

Diagram 6 (a) shows a rocket taking off from the surface of the Earth. If the same rocket is taking off from the surface of the Moon as shown in Diagram 6 (b), which quantity will decrease?

A Momentum B Mass of the rocket C Escape velocity D Linear speed of the rocket

30 more questions — sign in to do the whole paper free
