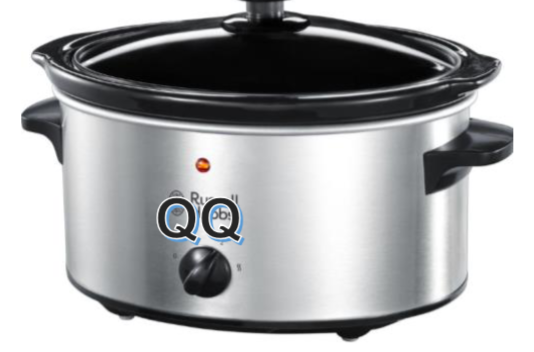

1 Diagram 1 shows the specification of a slow hot cooker. What is the physical quantity represented by power? star A Base quantity B Vector quantity C Derived quantity T4 Chapter 1.1 Physical Quantities

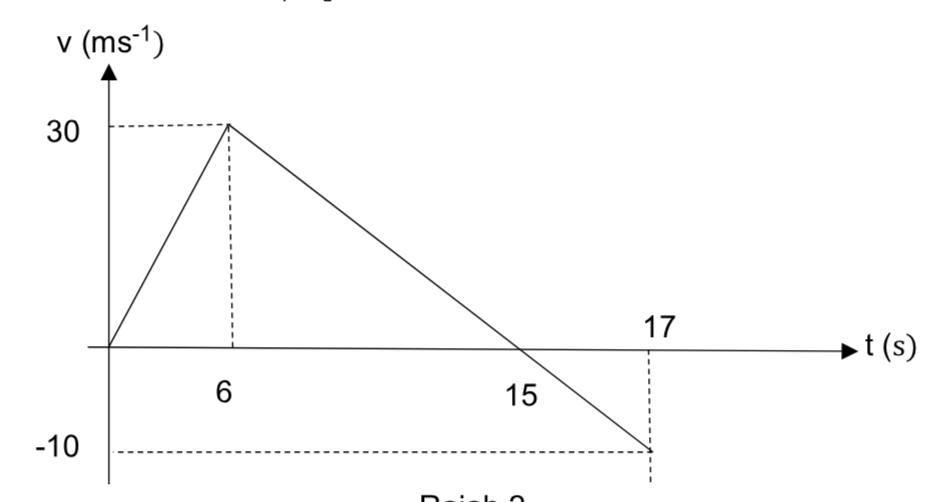

2 Diagram 2 shows the velocity against time. Find the total of displacement. star A 215 m B 225 m C 234 m D 340 m T4 Chapter 2.2 Linear Motion Graphs

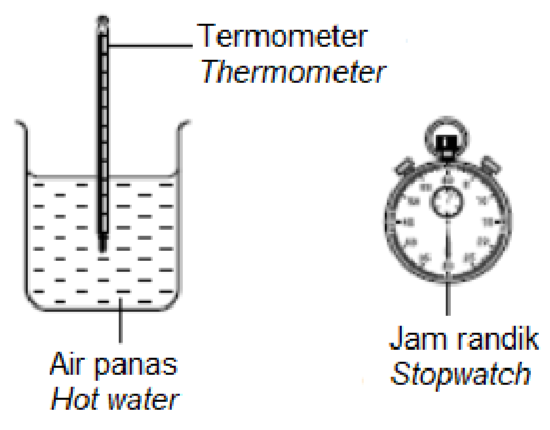

3 Diagram 3 shows a set-up to investigate the relationship between temperature and time during the cooling of hot water. A beaker of hot water is left to cool down. Which of the following is correct? star A Cooling time, Temperature of water, Volume of water B Cooling time, Volume of water, Temperature of water C Volume of water, Cooling time, Temperature of water D Temperature of water, Volume of water, Cooling time T4 Chapter 4.1 Thermal Equilibrium
4 An atomic nucleus at rest emits an \alpha-particle of mass 4 u. The speed of the \alpha-particle is found to be 5.6 x 10^6 ms^-1. Calculate the speed with which the daughter nucleus, of mass 218 u. star A 3.052 x10^2 ms^-1 B 1.028 x10^4 ms^-1 C 1.028 x10^5 ms^-1 D 3.052 x10^8 ms^-1 T4 Chapter 2.5 Momentum
5 Some tennis players can serve the ball at a speed of 55 ms¯¹, The tennis ball has a mass of 60 g. In an experiment, it is determined that the ball is in contact with the racket for 25 ms during the serve. Calculate the average force exerted by the racket on the ball. star A 1.32 N B 130 N C 132 N D 1320 N T4 Chapter 2.7 Impulse and Impulsive Force

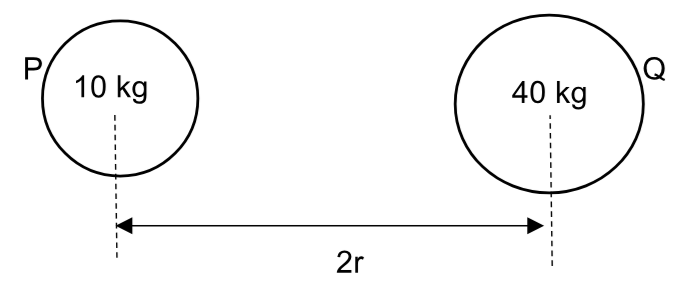

6 Gravitational force between two bodies, planet P and Q depends on the mass of the bodies, 10 kg and 40 kg as well as the distance between them, 2r. Based on Diagram 4, calculate gravitational force star A \frac{50G}{4r^2} B \frac{100 G}{r^2} C \frac{200 G}{r^2} D \frac{400 G}{r^2} T4 Chapter 3.1 Newton's Universal Law of Gravitation
7 A satellite orbits around the Earth with a constant period T. If R is the radius of the Earth and g is the gravitational acceleration on the surface of the Earth, which expression is the radius of the orbit? star A \frac{gT^2}{4\pi^2} B (\frac{4\pi^2}{gR^2T^2})^{1/2} C (\frac{gR^2T^2}{4\pi^2})^{1/3} D (\frac{gR^2T^2}{4\pi^2})^{1/2} T4 Chapter 3.1 Newton's Universal Law of Gravitation
8 The escape velocity at the height of 0.2R from a planet of radius R is 10 km s^{-1}. What is the escape velocity from the surface of the planet? star A 10 km s^{-1} B 11 km s^{-1} C 12 km s^{-1} D 13 km s^{-1} T4 Chapter 3.3 Man-made Satellites

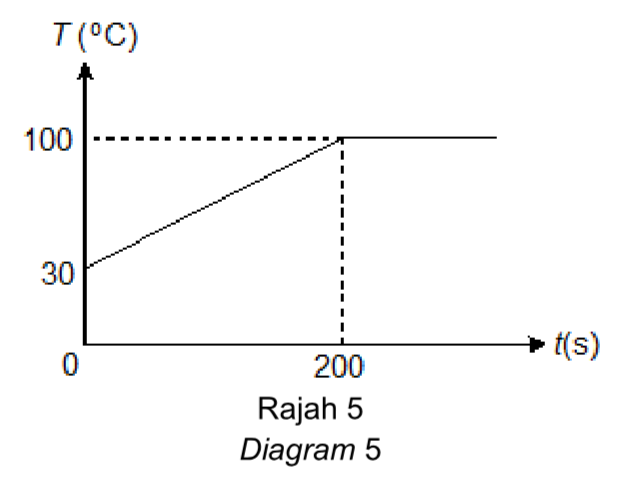

9 An electric kettle with power rating 240V, power P is used to boil 2 kg of water. Diagram 5 shows the graph of temperature, T against time, t of the process Calculate the power of electric kettle, P needed to boil 2 kg of water (Muatan haba tentu air/Specific heat capacity = 4200 J kg^-1 °C^-1) star A 1260 W B 2940 W C 4200 W D 5460 W T4 Chapter 4.2 Specific Heat Capacity

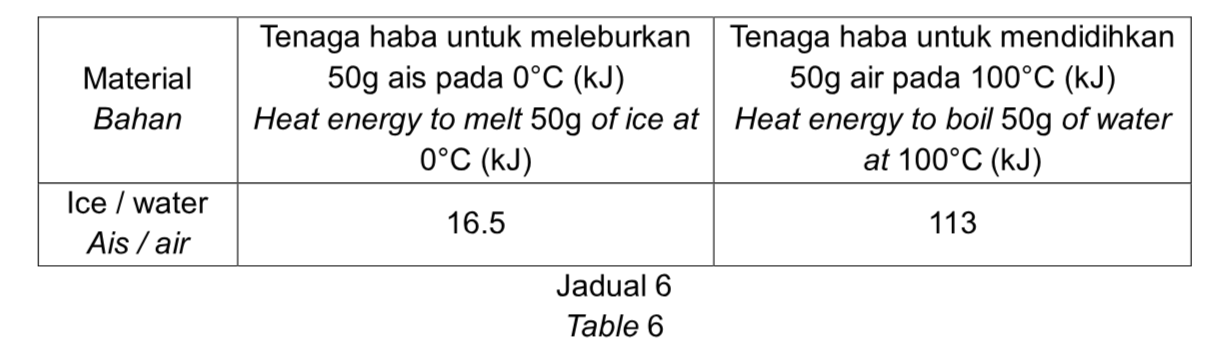

10 Based on Table 6, determine how many times more energy is required to boil a mass of water than to melt the same mass of ice? star A 0.15 B 6.8 C 56.5 D 96.5 T4 Chapter 4.3 Specific Latent Heat
11 The volume of an air bubble is 6 mm^3 when it is at a depth of H m below the water surface. Given that its volume is 15 mm^3 when it is at a depth of 2 m, find the value of H. star A 20 cm B 20 m C 90 cm D 24 m T4 Chapter 4.4 Gas Laws T5 Chapter 2.1 Pressure in Liquids T5 Chapter 2.2 Atmospheric Pressure

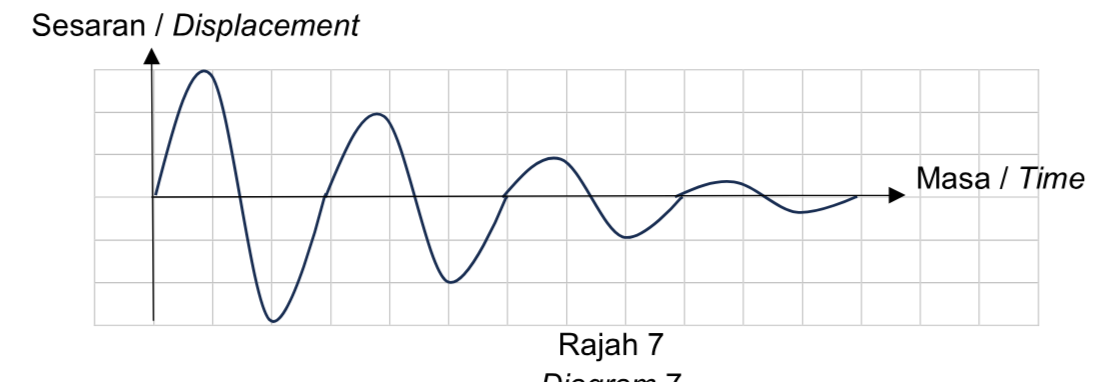

12 Diagram 7 shows a graph of displacement against time for a system experiencing damping, why does the amplitude of oscillation decrease? star A Because decrease in speed B Because decrease in wavelength C Because decrease in frequency D Because decrease in energy T4 Chapter 5.2 Damping and Resonance

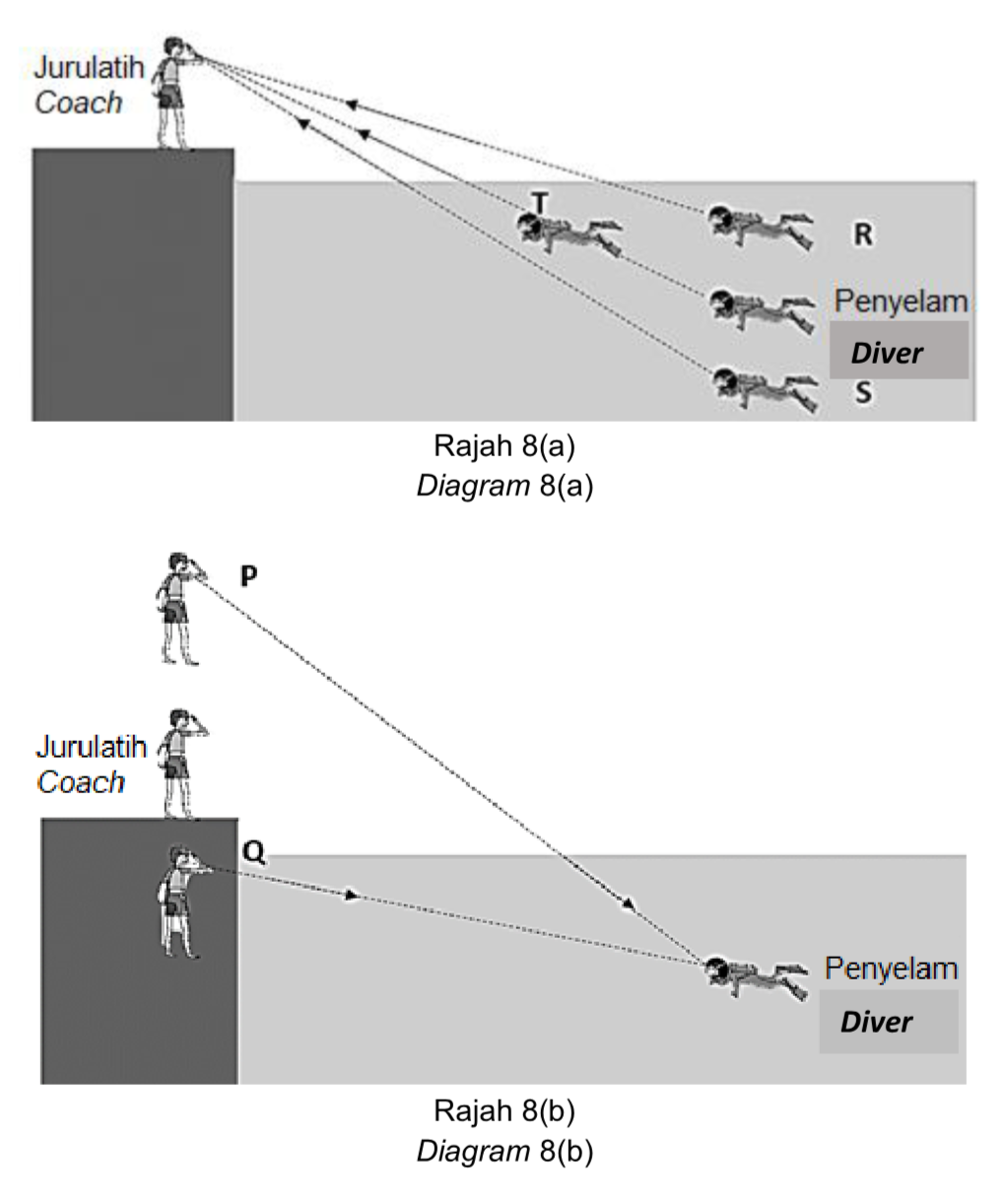

13 Based on diagram 8(a), the possible position diver's image is R, S or T. Diagram 8(b) shows possible position of coach's image is P or Q Pilih gabungan kedudukan kedua-dua imej yang betul. Choose the correct combination of both image position star A T, P B R, P C T, Q D S, Q T4 Chapter 6.1 Refraction of Light

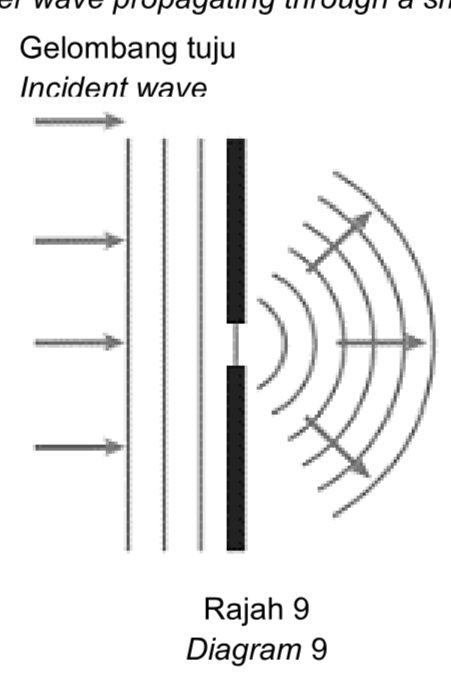

14 Diagram 9 shows a water wave propagating through a small gap. Which property of the diffracted wave is correct? star A The speed decrease B The amplitude decrease C The frequency increase D The wavelength decrease T4 Chapter 5.5 Diffraction of Waves

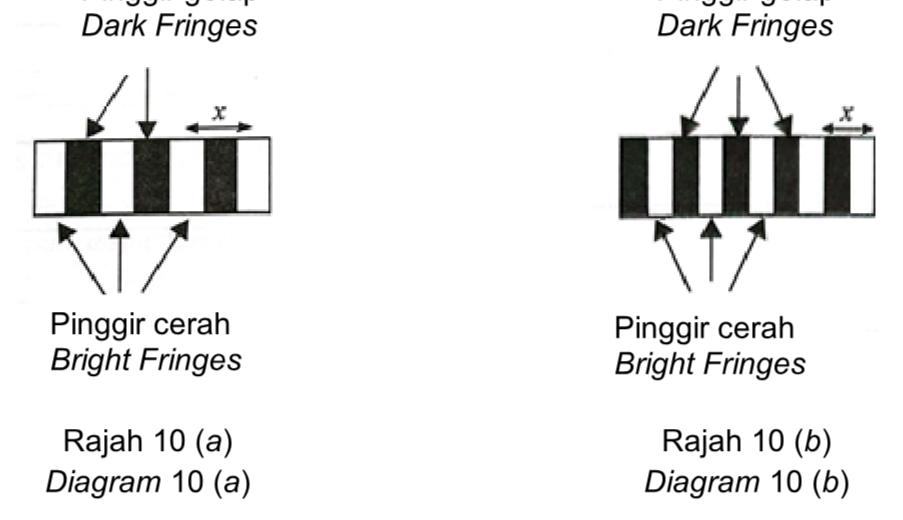

15 Diagrams 10 (a) and 10 (b) show the fringes formed on the screen from Young's double-slit experiment for each situation to determine the wavelength of a monochromatic light. Which combination is correct relationship of the distance between two successive bright fringes, x and colour monochromatic light use in each diagram? star A Purple, Purple B Purple, Red C Red, Purple D Red, Red T4 Chapter 5.6 Interference of Waves

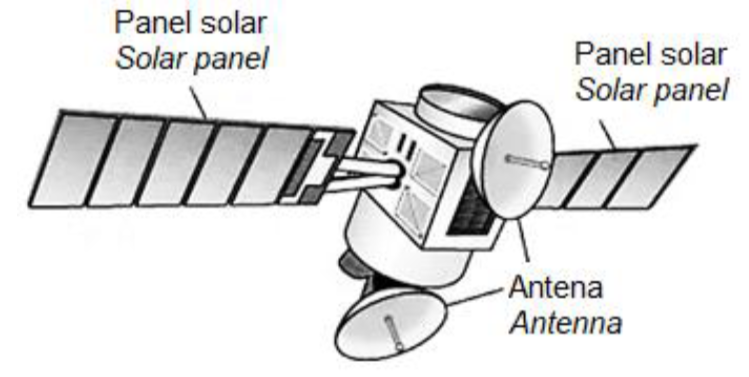

16 Diagram 11 shows a communication satellite. What type of wave is used? star A Radio waves B Microwaves C Infrared D UV Light T4 Chapter 5.7 Electromagnetic Waves
17 Diagram 12 shows a diamond, a mineral composed of pure carbon. Why sparkle of diamonds makes them unsurpassed as gems? star A Because diamond is the hardest element B Because diamond has low refractive index C Because diamond has bigger reflected angle D Because diamond has lower critical angle T4 Chapter 6.2 Total Internal Reflection

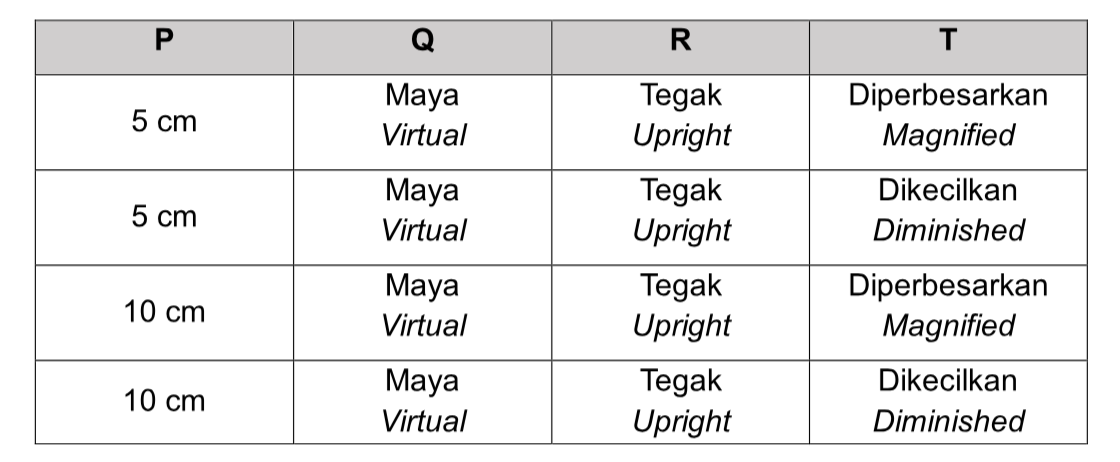

18 Based on Table 13, choose correct information of P, Q, R and T. star A 5 cm, Maya Virtual, Tegak Upright, Diperbesarkan Magnified B 5 cm, Maya Virtual, Tegak Upright, Dikecilkan Diminished C 10 cm, Maya Virtual, Tegak Upright, Diperbesarkan Magnified D 10 cm, Maya Virtual, Tegak Upright, Dikecilkan Diminished T4 Chapter 6.3 Image Formation by Lenses
19 An object is put in front of a convex lens at a position of 30 cm from the optical centre. If the focal length of convex lens is 15 cm, what is the magnification ratio of the final image to object? star A 1 : 1 B 1 : 2 C 2 : 1 D 3 : 2 T4 Chapter 6.4 Thin Lens Formula

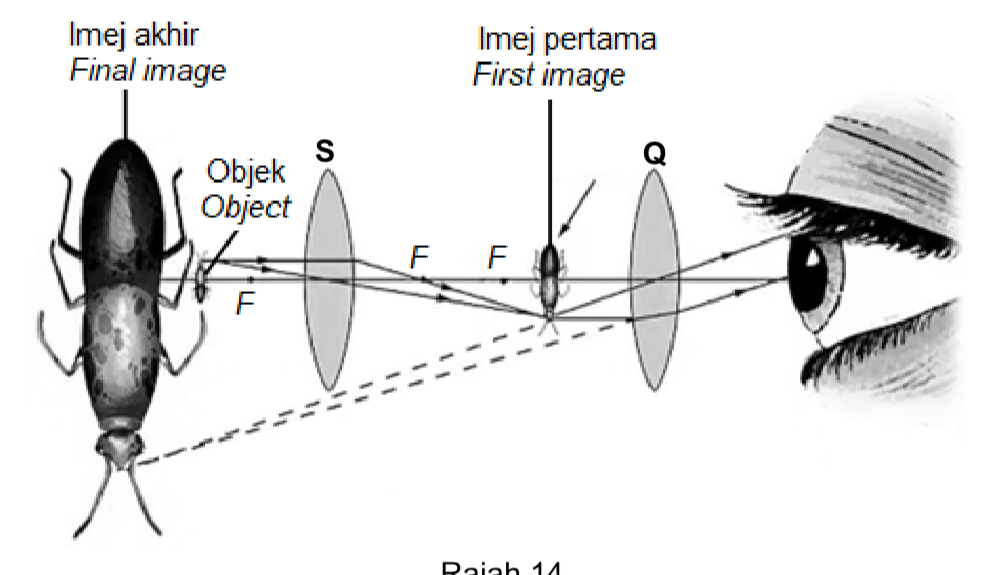

20 Diagram 14 shows the position of first image and the final image of an object by using compound microscope. Choose false statement. star A Both lenses are high power lenses B Object distance is at between F and 2F of lens S C The distance of first image is less than focal length of lens Q D Focal length of lens S is higher than lens Q T4 Chapter 6.5 Optical Instruments

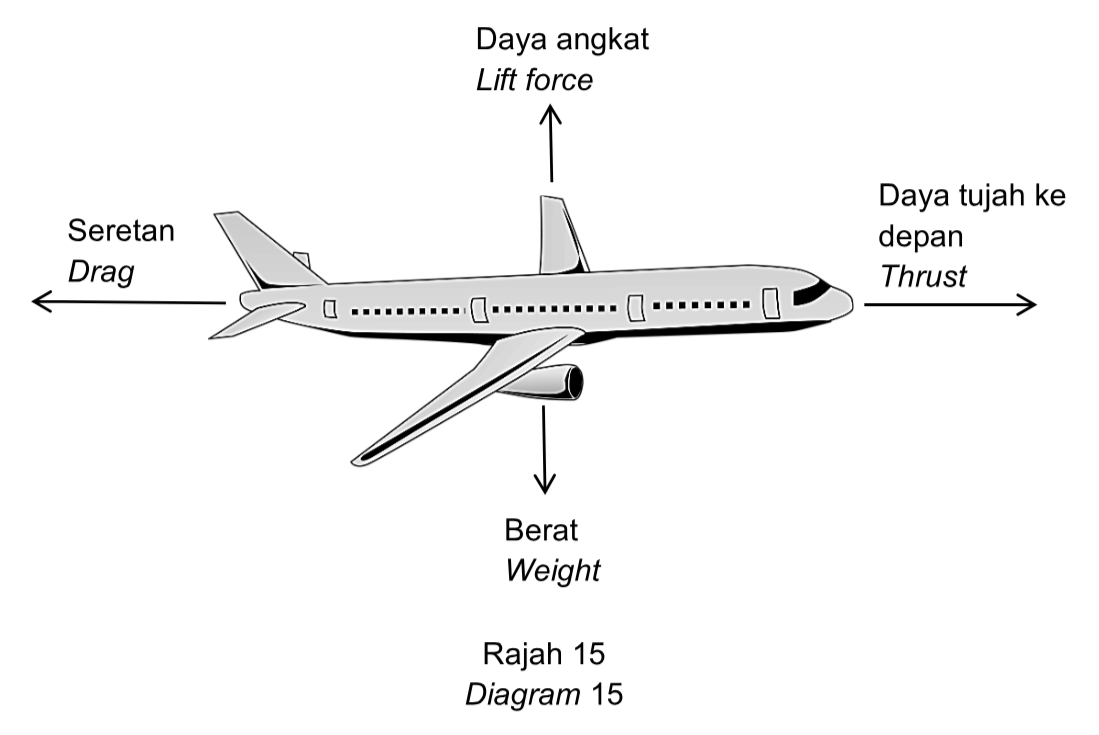

21 Diagram 15 shows an airplane flying horizontally with increasing velocity. Which of the following statements is correct? star A Weight > Lift Force B Lift force > Weight C Drag = Thrust D Thrust > Drag T5 Chapter 1.1 Resultant Force

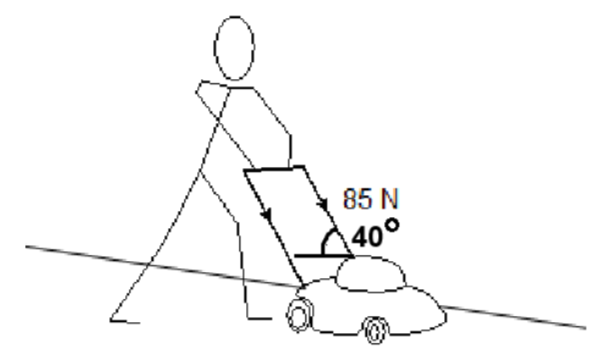

22 Diagram 16 shows a man pushing a lawn mower with a total force 85 N on the handle. What is the force that causes the lawn mower moves forward? star A 33 N B 55 N C 65 N D 85 N T5 Chapter 1.2 Resolution of Forces

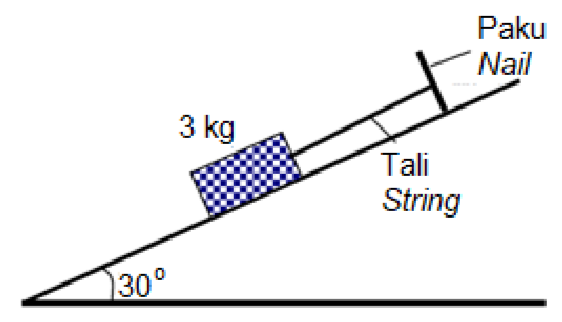

23 Diagram 17 shows a block of mass 3 kg supported by a light string on a smooth incline plane. What is the tension in the string if the block is at rest? star A 10.0 N B 12.0 N C 15.0 N D 30.0 N T5 Chapter 1.2 Resolution of Forces T5 Chapter 1.3 Forces in Equilibrium

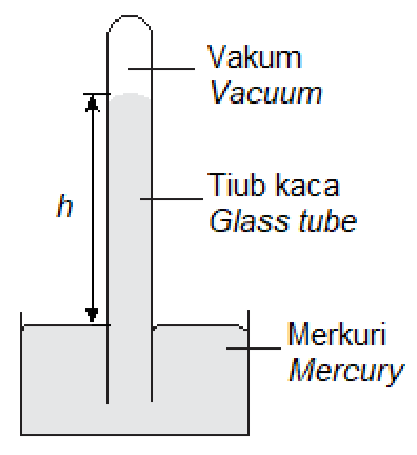

24 Diagram 18 shows the instrument to measure the atmospheric pressure. The name of this instrument is star A Manometer B Bourdon gauge C Mercury barometer D Aneroid Barometer T5 Chapter 2.2 Atmospheric Pressure

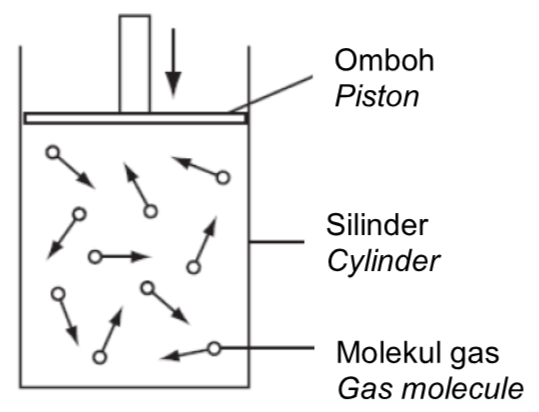

25 Diagram 19 represents gas molecules contained in a cylinder. The piston is moved slowly downwards, and the temperature of the gas stays the same. Why does the pressure of the gas increase? star A The molecules collide harder with the walls B The molecules collide more often with the walls C The molecules move more quickly D The number of molecules increase T4 Chapter 4.4 Gas Laws
26 Diagram 20 shows an advertising balloon released in the morning during the opening of a shopping mall in a city. The balloon is rising slowly in the air space. Which of the following is true about the situation? star A The buoyant force equal to the weight of the balloon B The buoyant force is greater than the weight of the balloon C The buoyant force equal to the volume of air displaced D The density of the gas in the balloon is higher than the density of the air outside T5 Chapter 2.5 Archimedes' Principle

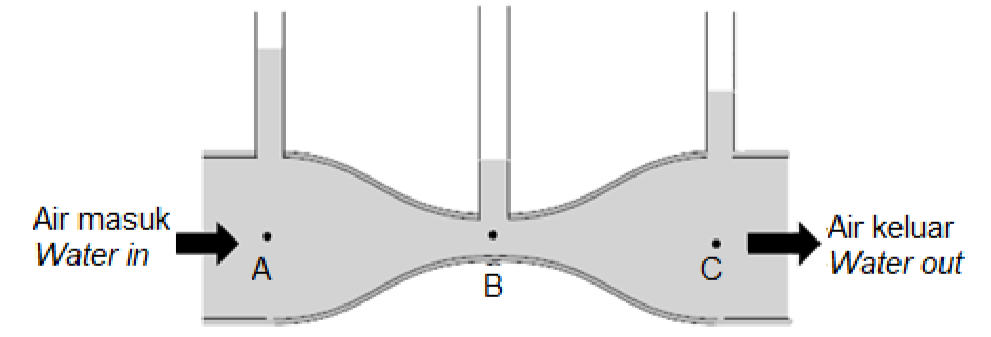

27 Diagram 21 shows water flowing into a ventury tube. At which point is the velocity of water the highest? star A A B B C C D D T5 Chapter 2.6 Bernoulli's Principle

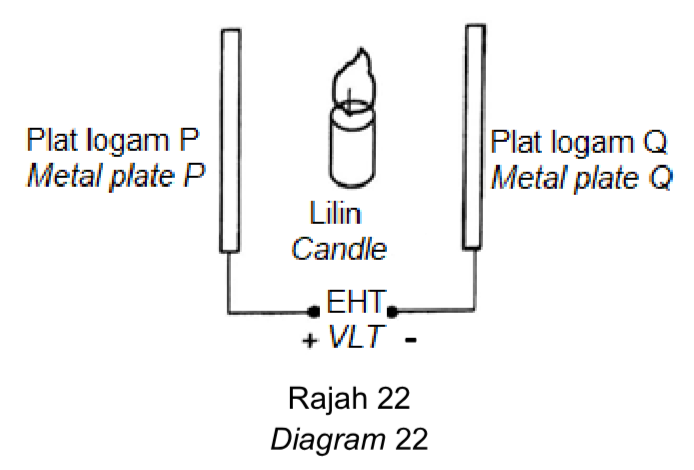

28 Diagram 22 show a lighted candle placed between two parallel metal plates connected to Extra High Tension (E.H.T) power supply. What happens to the candle flame when the E.H.T power is switched on? star A The flame is static B The spread of the flame towards plate P is bigger C The spread of the flame towards plate Q is bigger D The flame flattens and spreads in two opposite directions evenly T5 Chapter 3.1 Current and Potential Difference

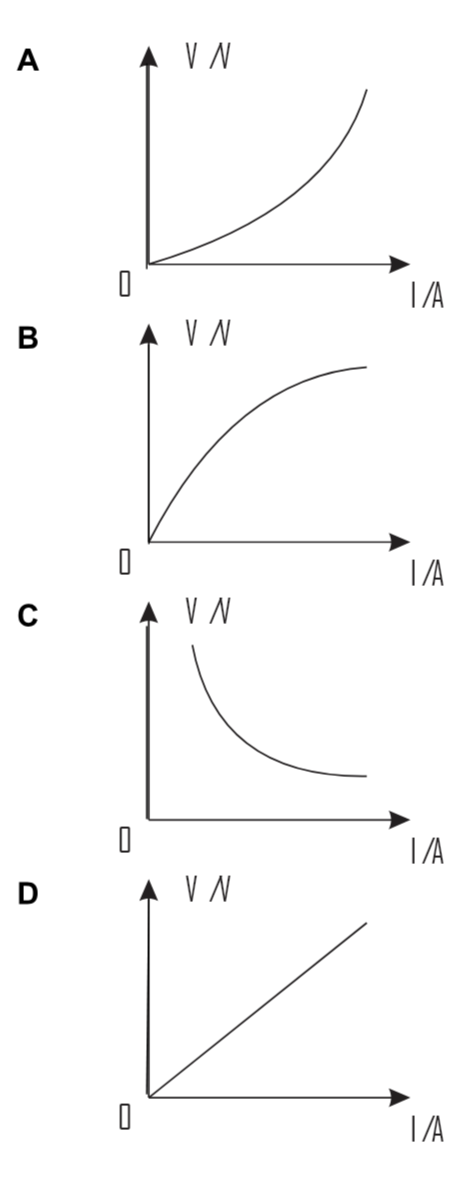

29 A simple circuit is set up as shown in Diagram 23. The brightness of the light bulb changes as the rheostat is adjusted. Which graph best represents the relationship between potential difference, V across the bulb and current, I that flows through it? star A A Figure B B Figure C C Figure D D Figure T5 Chapter 3.2 Resistance

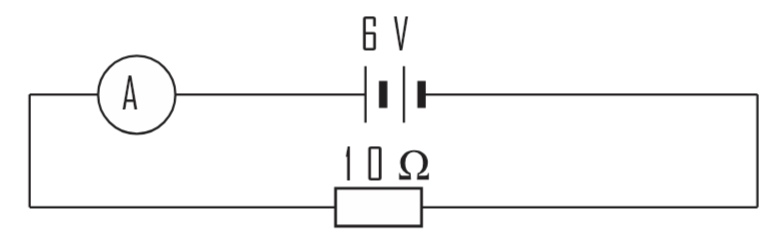

30 Diagram 24 shows an electric circuit. What is the energy dissipated in the resistor for 1 minute? star A 6 J B 60 J C 216 J D 3600 J T5 Chapter 3.4 Electrical Energy and Power

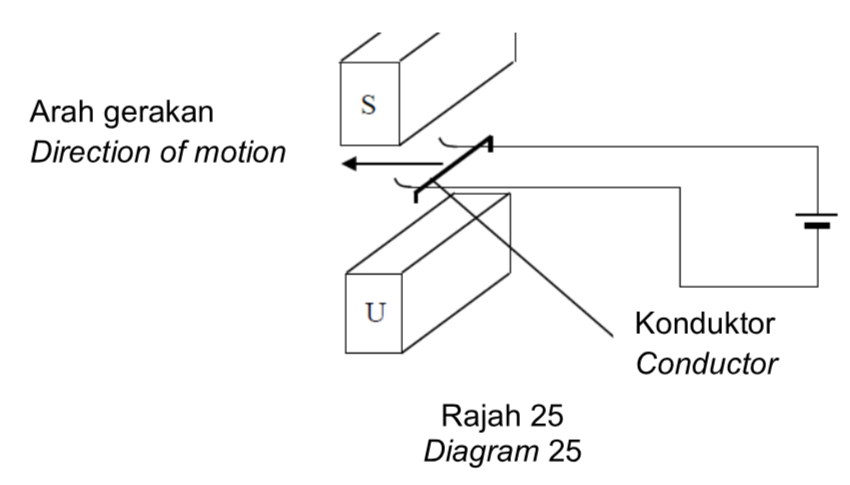

31 Diagram 25 shows the movement of a current carrying conductor between two magnets. Which of the following will increase the speed of movement of the conductor? star A use longer conductor B use a greater number of dry cells C change the polarity of the magnet D increase the distance between the two magnets T5 Chapter 4.1 Force on a Current-carrying Conductor in a Magnetic Field

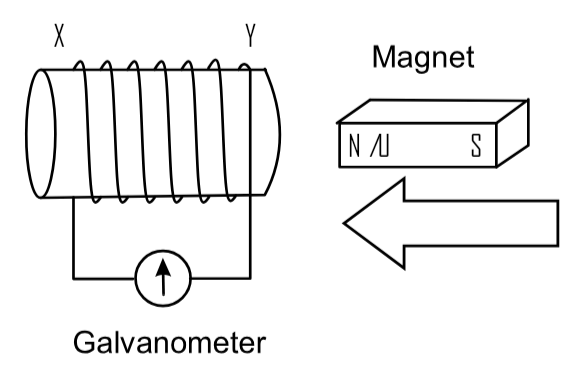

32 Diagram 26 shows a bar magnet is moving towards a solenoid. What is the magnetic polarity at both ends of the solenoid, X and Y? star A South / Selatan, South / Selatan B South / Selatan, North / Utara C North / Utara, South / Selatan D North / Utara, North / Utara T5 Chapter 4.2 Electromagnetic Induction

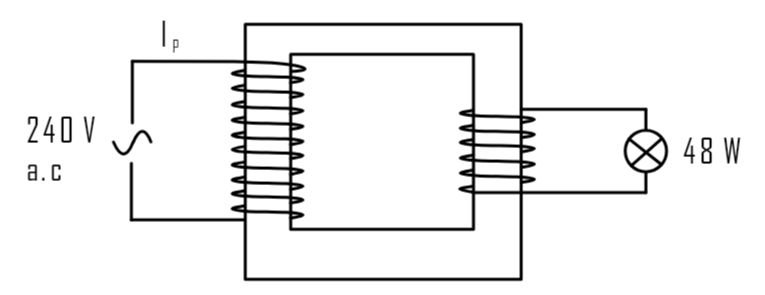

33 Diagram 27 shows an ideal transformer used to light up a bulb at normal brightness. What is the current Ip? star A 0.2 A B 1.2 A C 5.0 A D 8.0 A T5 Chapter 4.3 Transformers
34 Thermionic emission involves star A the release of electron from the surface of the heated metal. B the deflection of an electron beam by the Y-plate. C the forming of a bright spot when the electrons strike the fluorescent screen. D the ionization of the surrounding air by heat. T5 Chapter 5.1 Electron

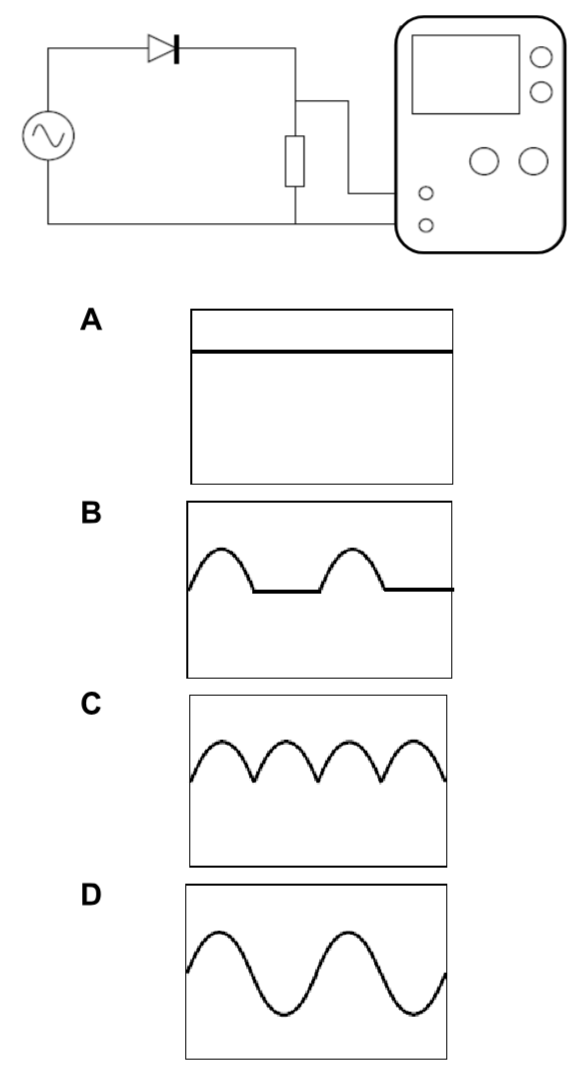

35 Diagram 28 shows a cathode ray oscilloscope (CRO) connected to an electrical circuit. Which diagram shows the trace displayed on the screen of the CRO? star A A Figure B B Figure C C Figure D D Figure T5 Chapter 5.1 Electron T5 Chapter 5.2 Semiconductor Diode

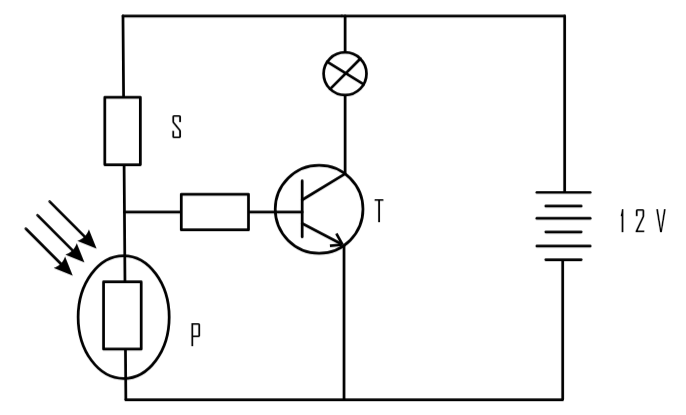

36 Diagram 29 shows a transistor circuit. Resistor P has a resistance of 10 kΩ. In order to light the bulb, the potential difference across resistor P must be at least 2V. What is the maximum value of resistor S when the bulb is light up? star A 10 kΩ B 40 kΩ C 50 kΩ D 60 kΩ T5 Chapter 5.3 Transistor
37 The following equation shows the decay of Thorium-234. \begin{array}{l} { }_{90}^{234} \mathrm{Th} \rightarrow{ }_{\mathrm{x}}^{226} \mathrm{Ra}+\mathrm{y}_{2}^{4} \mathrm{He}+2_{-1}^{0} \mathrm{e} \end{array} What are the values of x and y? star A 80, 1 B 84, 2 C 88, 2 D 92, 3 T5 Chapter 6.1 Radioactive Decay
38 The following equation shows a nuclear fusion. The mass defect from the reaction is 0.028688 u. ^2_1H + ^3_1H -> ^4_2He + ^1_0n + energy /tenaga Calculate the energy released in the reaction. star A 5.29 x 10^-46 J B 4.76 x 10^-29 J C 1.43 x 10^-20 J D 4.29 x 10^-12 J T5 Chapter 6.2 Nuclear Energy

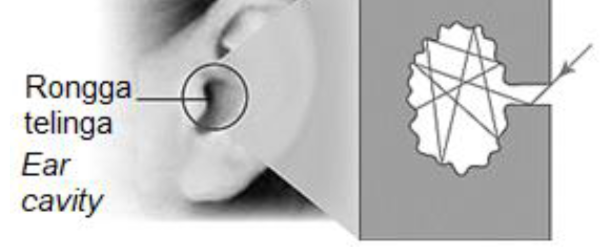

39 Diagram 30 shows the process that occurs when light radiation enters the ear cavity. The ear cavity can act as star A light reflector B light absorber C black body radiator D black body T5 Chapter 7.1 Quantum Theory of Light

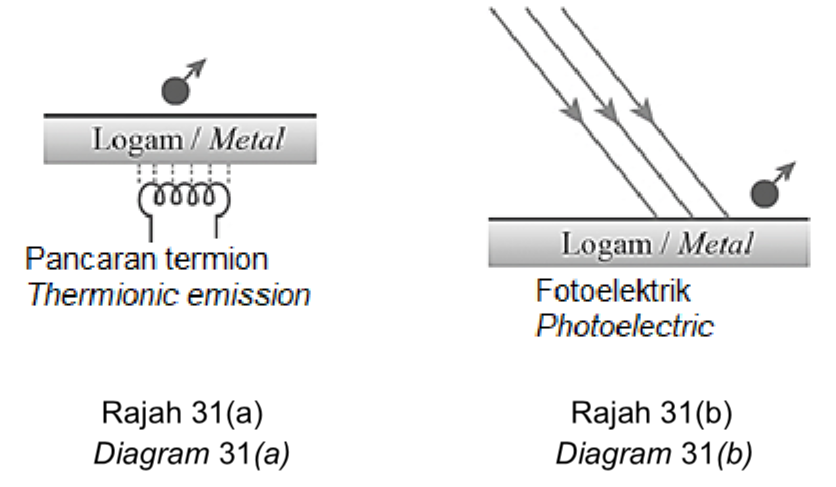

40 Diagram 31(a) shows the process of thermionic radiation. Diagram 31(b) shows the photoelectric effect. Which of the following is correct about the time taken for electron to release from a metal surface? star A Take some time, Take some time B Take some time, Instantaneously C Instantaneously, Take some time D Instantaneously, Instantaneously T5 Chapter 5.1 Electron T5 Chapter 7.2 Photoelectric Effect
